XZJJ construction hoist SC100/100 for buildings 40m high
การให้คำปรึกษาออนไลน์
1000kg
Loder Weight
3000*1500*2200mm
Dimension(L*W*H)
100m
Max Lifting Height
เอ็กซ์ซีเอ็มจีประเทศไทย
ร้านค้าทางการ
เวลาตอบสนอง 8:00 - 22:00
ข้อมูลเพิ่มเติม >
คำอธิบายสินค้า

Xuzhou WORLDO Machinery Technology Co.Ltd.was a branch Company of XCMG Group,the former is the branch of construction machinery form Xuzhou Construction Machinery Co .,Ltd.It is specialized in the R&D,manufacturing,installation and maintenance of building hoist sand various construction machinery applicable tools.

Since 1995,it started production of SC(D)200/200 building hoist ,after twenty years of concentrated training ,currently the building hoists include load capacity is from 1 ton to 3.2Tons,speed is from low to middle high ,driving form is from the traditional worm gear drive to gear drive control system is from ordinary AC contractor control to transducer control etc.The brand “XZJJ” win a widely reputation at home and abroad.

Xuzhou WORLDO Machinery Technology Co., Ltd.has a high-quality R&D team ,established a partnerships with Dalian University of Technology and its R&D Center,for the building hoist product series ,optimized design,combining internet technology the building hoist products to get continued  promote.We have acquired a dozen patents.We also won the certification of national high-tech  enterprises, Jiangsu Province private technology enterprises ,high-tech products identification.

The company constantly strengthen and perfect quality management system according to Standard ISO 9001.It keeps scientific management,careful operation ,a variety of manufacturing ,testing equipment ,the special tooling ,full facilities .With an annual manufacturing capacity of 1000units of building hoists and construction machinery attachments,our annual output value of more than three hundred million RMB,can meet the various needs of customers.

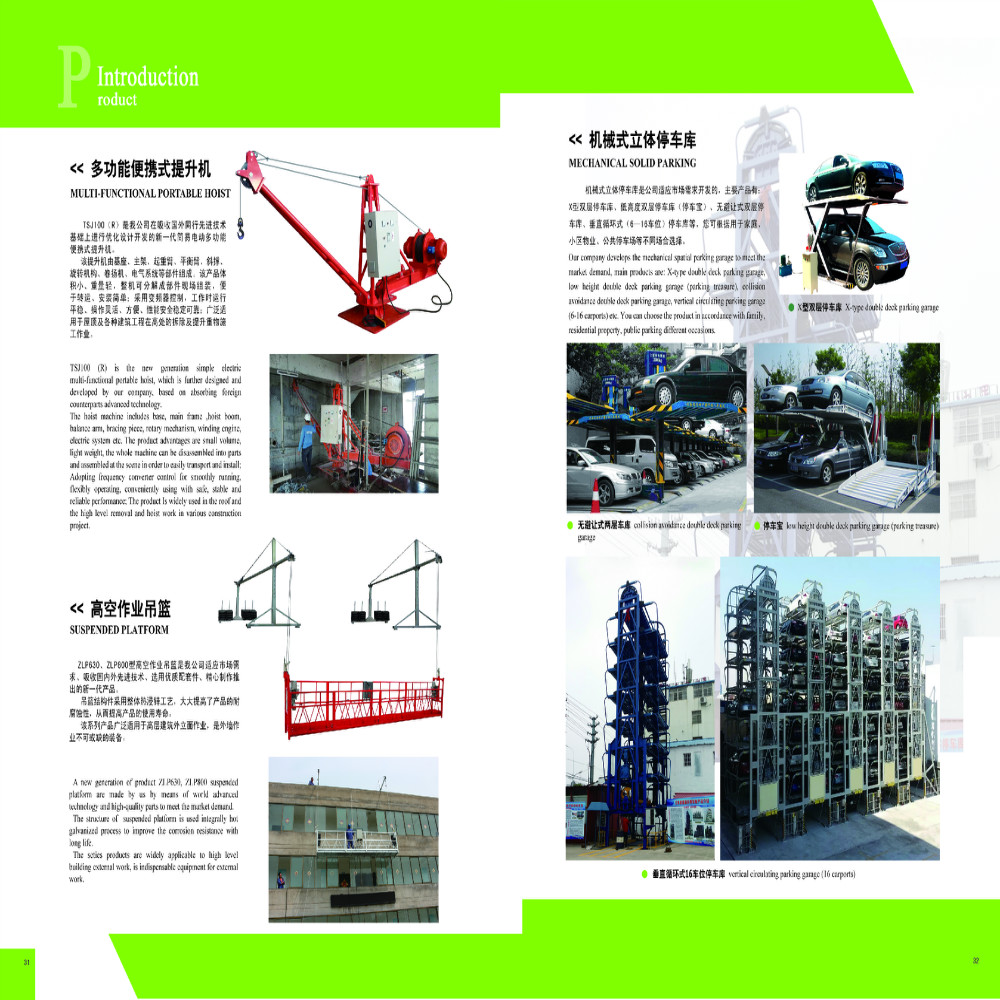

The company keeps innovation and diversity of development,based on the main business.We have designed crane clamp grab,clamshell grab,orange peel grab,port crane and crane clamshell grab attachments ,which  are received a high praise .As the parking problem gradually revealed,three-dimensional garage as our company strategic goods have  been effective technical reserves,which make WORLDO diversified development being more impressive.

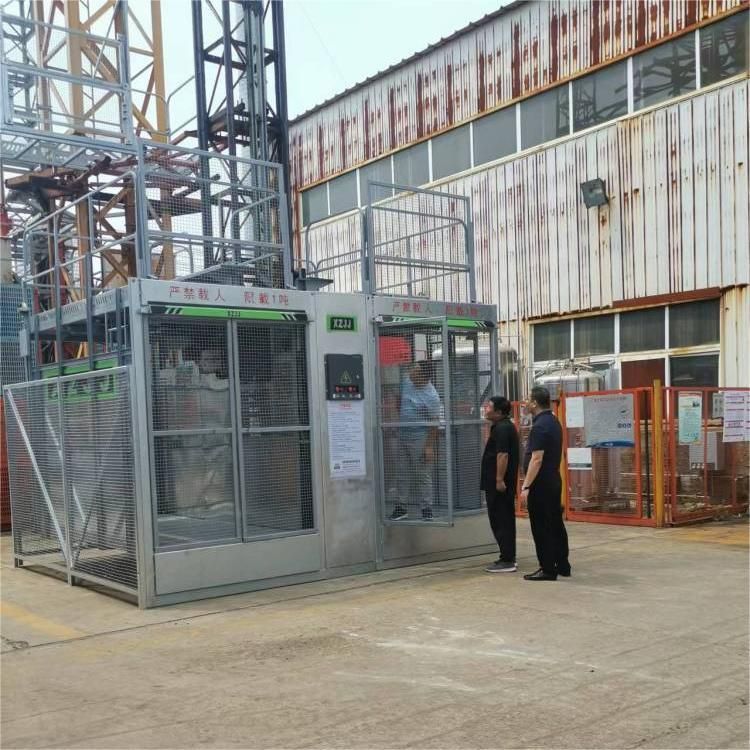

SC100/100(M)type freight construction hoist ,base on the technology of both freight and person dual-purpose SC series construction elevator .combining the characteristics of low rise buildings,absorb the current domestic and foreign advanced technology design and development of a new generation of freight elevator construction freight lifts,reasonable structure,safe,easy disassembly and maintenance ,attractive appearance ,long service life.

This products use single-motor rack and pinion ,the transmission machanism placed inside the cage ,the anti-fall safety device ,overload protection ,limit switches,etc.set in the drive plate ,cage installation of cameras,equipped with a monitor display screen special operation Taiwan set up in the cage ,remote operation via cable .Its main components rail brackets and rack attached to the wall  with the SC series construction hoist common people and goods.

The product is suitable for the building construction which lower than the height of 40 meters to vertical transport of freight.

Technical dataUnit  SC100/100BPParameter
Rated loadkg2000*2
Maximum lifting heigjtm100
Lifting speedm/min0-28
Jid attachment rated loadkg250
Rated outputkw2*13
Rated currentA2*2*23.2
Security anti-dropping model/SAJ3.0-1.2
 Voltage of power supplyv/hz380/50
 Mast sectionmm650*650*1508
 The hoist spacemm3000*1300*2200

The company constantly strengthen and perfect quality management system according to Standard ISO 9001.It keeps scientific management,careful operation ,a variety of manufacturing ,testing equipment ,the special tooling ,full facilities .With an annual manufacturing capacity of 1000units of building hoists and construction machinery attachments,our annual output value of more than three hundred million RMB,can meet the various needs of customers.

The company keeps innovation and diversity of development,based on the main business.We have designed crane clamp grab,clamshell grab,orange peel grab,port crane and crane clamshell grab attachments ,which  are received a high praise .As the parking problem gradually revealed,three-dimensional garage as our company strategic goods have  been effective technical reserves,which make WORLDO diversified development being more impressive.



ข้อมูลจำเพาะและการเปรียบเทียบ
Loder Weight: 1000kg
Dimension(L*W*H): 3000*1500*2200mm
Max Lifting Height: 100m
Hoisting Speed: 0-28m/min
Rated Loading Capacity(kg): 1000kg
Model Number: SC100/100
Brand Name: XZJJ
Place of Origin: Xuzhou Jiangsu
Certification: CE/ISO
