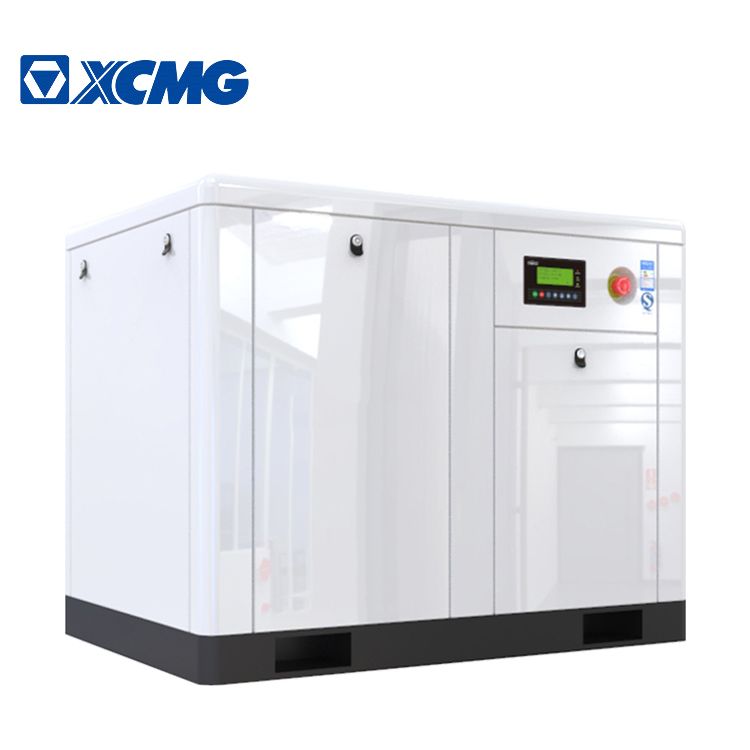

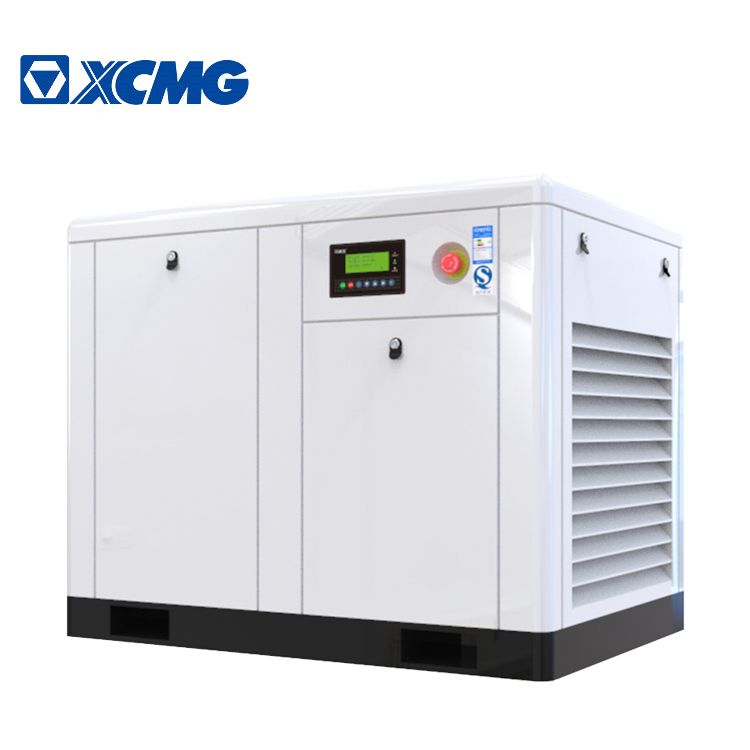

XCMG Official 37KW - 250KW Direct driven screw air compressor price
Noise enclosure
It is designed into fully-closed mute box, in which sound-absorbing sponge are attached for effective absorption of noise,thereby making the noise 3-5dB(A) lower than that made by the compressors of the same kind.It is reasonably structured overall and very easy to maintain and repair.
Control Panel
Intelligent microcomputer-based control technology can monitor and control in all aspects the complete machine following your instructions. Remote control realizes unattended operation, and the user-friendly human-machine interface displays instructions and parameters in written form. Also, it can function to self diagnose faults,give warning and automatically regulate the capacity.
Motor
First-class motors are adopted, with the level of protection being Ip54 and insulation level being F.overall and very easy to maintain and repair.
Cooler
It is designed for low temperature difference to increase heat exchange area, and ideal to be applied to high-temperature and high-humidity operating environment.
Configuration characteristics
1. A precisely-made central bracket is used to keep the motor aligned permanently with the bare compressor 2. A highly resilient coupling is adopted to make the compressor operate smoothly, and the elastomer is long in useful life 3. The exhaust pipe adopts double-layer bellows, and the oil circuit adopts specially-made temperature-resistant 125º C high-pressure hose 4. For the extremely high temperature condition in some districts, the large-area plate heat exchange and high-efficiency water chiller are used 5. High-quality shaft coupling elastic body can buffer and compensate for the imbalanced moment of operation.
| Model | Air flow | pressure | Motor power | Caliber | Noise | Cooling air volume | Cooling water |
| m ³/min | MPa | kW | dB（A） | m ³/min | L/min | ||
| LA-7GA | 1.35 | 0.7 | 7.5 | G1/2 | 62±2 | 32.5 | |
| 1.25 | 0.8 | ||||||
| 1.01 | 1 | ||||||
| 0.9 | 1.25 | ||||||
| LA-11GA | 1.8 | 0.7 | 11 | G3/4 | 63±2 | 50 | |
| 1.78 | 0.8 | ||||||
| 1.55 | 1 | ||||||
| 1.3 | 1.25 | ||||||
| LA-15GA | 2.5 | 0.7 | 15 | G3/4 | 63±2 | 50 | |
| 2.4 | 0.8 | ||||||
| 2.1 | 1 | ||||||
| 1.8 | 1.25 | ||||||
| LA-18GA | 3.1 | 0.7 | 18.5 | G1 | 64±2 | 100 | |
| 3 | 0.8 | ||||||
| 2.7 | 1 | ||||||
| 2.3 | 1.25 | ||||||
| LA-22GA/W | 3.8 | 0.7 | 22 | G1 | 64±2 | 110 | 14.5 |
| 3.7 | 0.8 | ||||||
| 3.2 | 1 | ||||||
| 2.8 | 1.25 | ||||||
| LA-30GA/W | 5.4 | 0.7 | 30 | G1 | 65±2 | 145 | 20 |
| 5.25 | 0.8 | ||||||
| 4.5 | 1 | ||||||
| 3.9 | 1.25 | ||||||
| LA-37GA/W | 6.6 | 0.7 | 37 | G1 ½ | 65±2 | 145 | 25 |
| 6.6 | 0.8 | ||||||
| 5.9 | 1 | ||||||
| 4.8 | 1.25 | ||||||
| LA-45GA/W | 8.4 | 0.7 | 45 | G1 ½ | 66±2 | 185 | 30 |
| 8 | 0.8 | ||||||
| 7.4 | 1 | ||||||
| 6.4 | 1.25 | ||||||
| LA-55GA/W | 10.8 | 0.7 | 55 | G2 | 68±2 | 220 | 39.9 |
| 10 | 0.8 | ||||||
| 9.1 | 1 | ||||||
| 8 | 1.25 | ||||||
| LA-75GA/W | 13.8 | 0.7 | 75 | G2 | 72±2 | 250 | 51 |
| 13 | 0.8 | ||||||
| 11.8 | 1 | ||||||
| 10.3 | 1.25 | ||||||
| LA-90GA/W | 17.1 | 0.7 | 90 | G2 | 72±2 | 270 | 61 |
| 17 | 0.8 | ||||||
| 15.2 | 1 | ||||||
| 12.5 | 1.25 | ||||||
| LA-110GA/W | 21.2 | 0.7 | 110 | G2 1/2 | 75±2 | 420 | 79 |
| 20 | 0.8 | ||||||
| 17.1 | 1 | ||||||
| 15.4 | 1.25 | ||||||
| LA-132GA/W | 25 | 0.7 | 132 | G2 1/2 | 75±2 | 460 | 91 |
| 24.3 | 0.8 | ||||||
| 21 | 1 | ||||||
| 17.5 | 1.25 | ||||||
| LA-160GA/W | 30.5 | 0.7 | 160 | G2 1/2 | 75±2 | 510 | 105 |
| 29.2 | 0.8 | ||||||
| 26.9 | 1 | ||||||
| 22.5 | 1.25 | ||||||
| LA-185GA/W | 32.9 | 0.7 | 185 | G2 1/2 | 75±2 | 510 | 123 |
| 31.9 | 0.8 | ||||||
| 29.1 | 1 | ||||||
| 25.5 | 1.25 | ||||||
| LA-220GA/W | 37 | 0.7 | 220 | DN80 | 75±2 | 710 | 144 |
| 36.3 | 0.8 | ||||||
| 31.63 | 1 | ||||||
| 28.55 | 1.25 | ||||||
| LA-250GA/W | 45.8 | 0.7 | 250 | DN80 | 75±2 | 800 | 163 |
| 44 | 0.8 | ||||||
| 39 | 1 | ||||||
| 35.5 | 1.25 |
