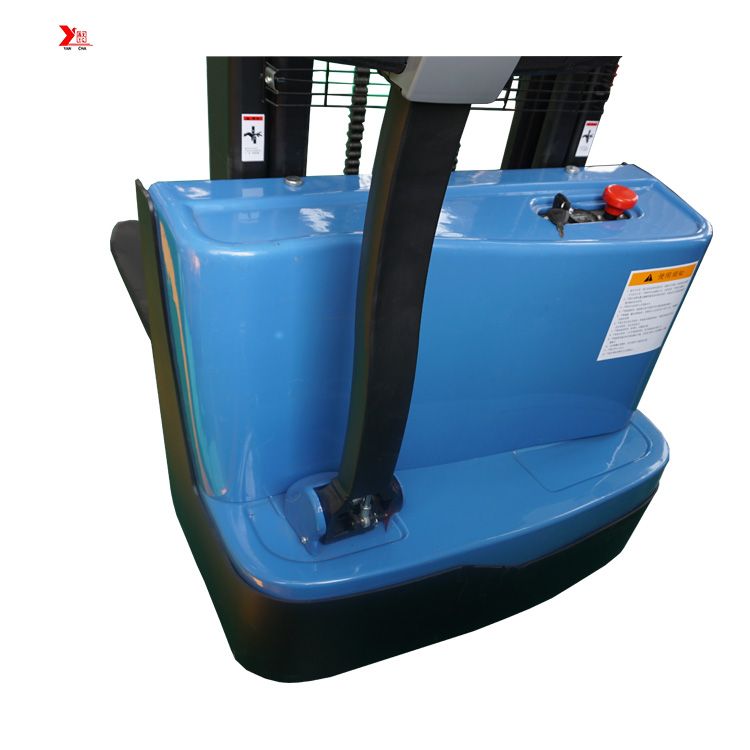

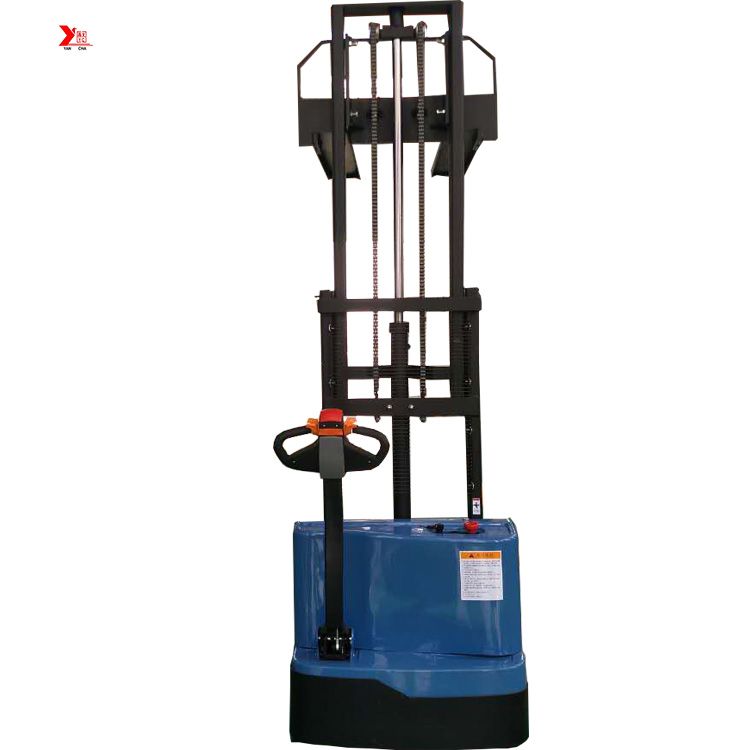

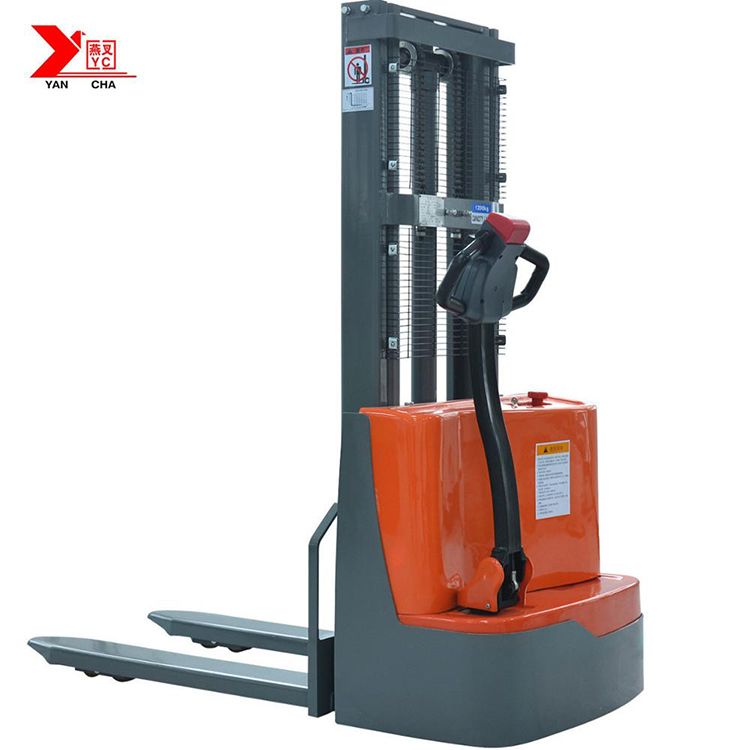

YANCHA walkie Electric Stacker CDW1530 1ton 2 ton.
An electric stacker is a storage device that uses batteries as energy and electric motors as power. The main structure includes batteries, motors, hydraulic pumps, cylinders, piston rods, shift forks, chains, controllers, etc.
Its main function is to raise the weight to the required height. YANCHA walkie Electric Stacker CDW1530 1ton 2 ton is generally used in warehouses, workshops and other places where logistics is required. With the use of pallets, it can greatly improve storage efficiency. Therefore, the electric pallet stacker is also called the electric pallet stacker.
|
project |
Unit |
CDW1530 |
|
Load Capacity |
|
1.5T |
|
Lift Height |
m |
3 |
|
Color |
|
blue/yellow/orange or customer demands |
|
Wheel |
|
PU wheel |
|
Fork length |
mm |
1070 |
|
Weight |
kg |
595 |
|
Dimension |
mm |
1750*800*2090 |
|
The Min. Turning Radius |
mm |
1390 |
|
Width between two Forks |
mm |
355 |
|
Outer width between two Forks |
mm |
680 |
|
Front Wheel Dimension |
mm |
80*70 |
|
Drive Wheel Dimension |
mm |
210*75 |
|
Lift motor |
kw |
2.2 |
|
Driving motor |
kw |
0.75 |
|
Battery |
|
24V/80A |
|
Lift speed with load |
mm/sec |
135 |
|
Driving speed with load |
km/h |
3.5 |
