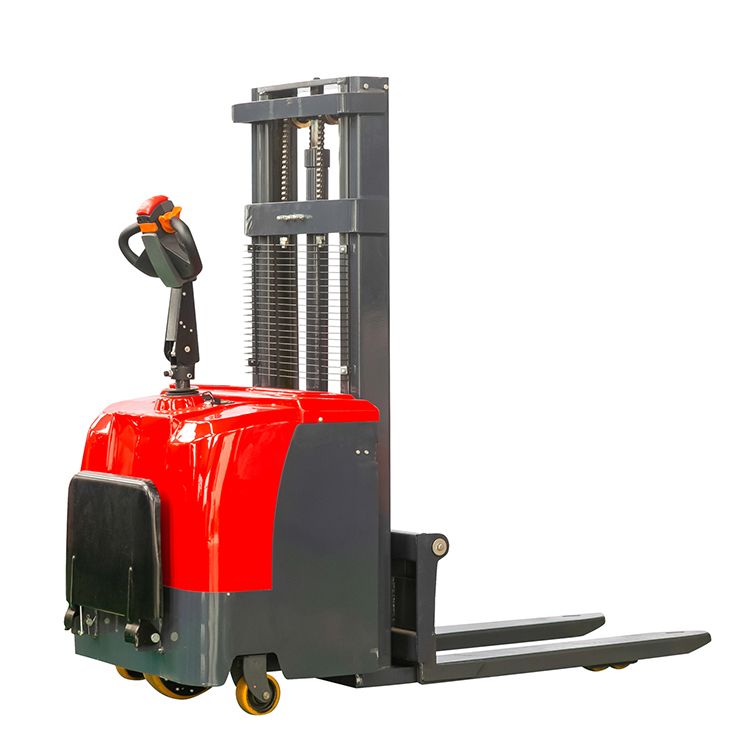

China YANCHA 1.5 ton stacker lift 3m for warehouse 2350mm door frame height.

China YANCHA 1.5 ton stacker lift 3m for warehouse 2350mm door frame height adopts imported motor to output strong traction and power so that it can still walk steadily on rough road and slope.

Advantages:

1.Adopt powerful hydraulic motor to supply more torque so as to make the truck lift and drop steadily.

2.More safe and confortable braking system.

3.Equipped with combined idler wheel with high strength and low deformation degree.

4.Equipped oil cylinder on the back to make a broaden sight.

5. Flow-limiting valve can adjust drop speed of portal frame. It can prevent portal frame from dropping fast even though the oil pipe explodes, and guarantee the safety of operator.

Model	Unit	CDD1030	CDD1530	CDD2030
Load Capacity	kg	1000	1500	2000
Lift Height	mm	3000	3000	3000
Load Center	mm	500	500	500
Fork Length	mm	1070	1070	1070
Lowest height	mm	25	25	25
Manipulation Way		Handle
Tyres		Nylon/PU
Dimension of Driving Wheel		250*80	250*80	250*80
Speed at Full Load	km/h	5	5	5
Lifting Speed at full Load	mm/sec	90	85	80
Speed Control Way		Stepless Speed Regulator
Door Frame Tilt Angle	°	/	/	/
Gradient at full Load	°	10	8	8
Battery	V/Ah	24/180	24/180	24/180
Working Time(for reference)	h	8	7	7
Driving Motor	kw	1.2	1.2	1.5
Lifting Motor	kw	2.2	2.2	3
The Min. Turning Inner Radius	mm	1250
L X W X H Dimension	mm	20008602080
weight	kg	680	700	750
lifting Height at each weight	mm	1600/2000/2500/3000/3500
Height of Door Frame	mm	2080/1600/1850/2080/2350
