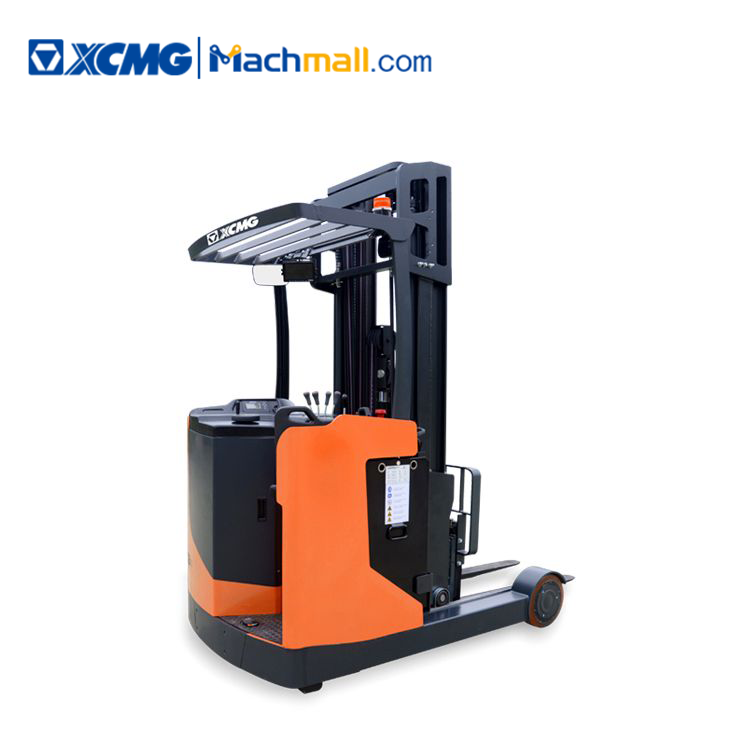

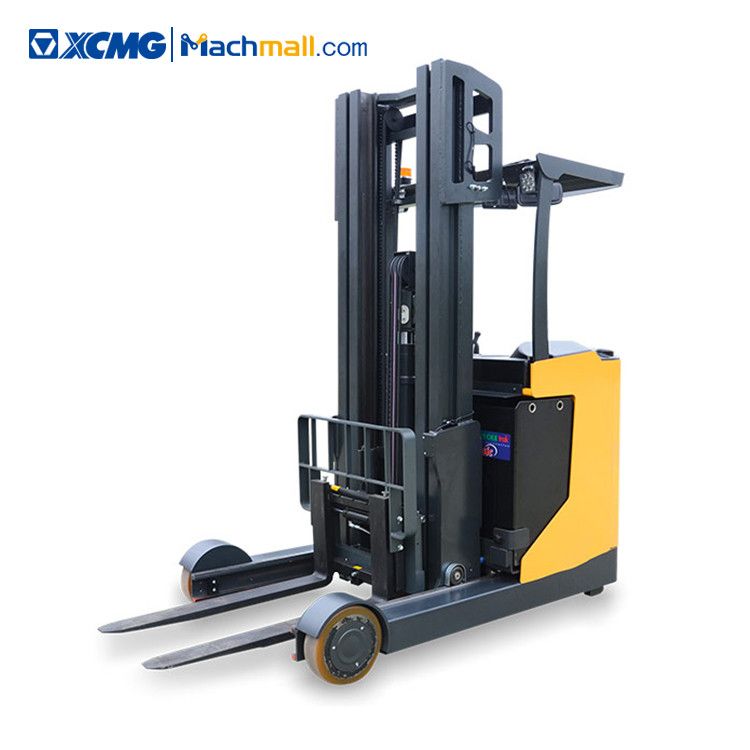

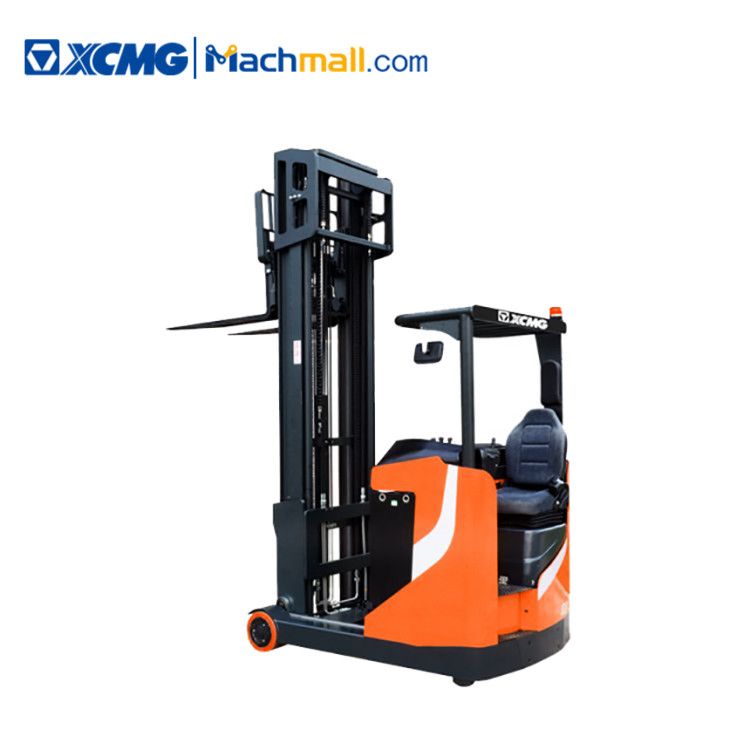

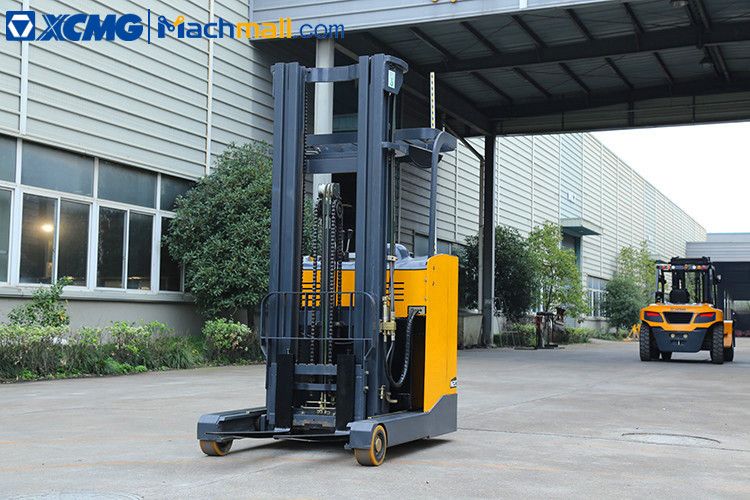

XCMG lift truck XCF-PSG20 2 ton capacity stacker 5m lift height.



XCMG lift truck XCF-PSG20 2 ton capacity stacker 5m lift height is equipped with adjustable seat, comfortable operation.



Features:



1.Intelligent front side pull type battery structure, battery replacement is simple and quick, all in one go.



2.The mast piping system is equipped with a safety speed limit valve to effectively control the descending speed of the goods. High-standard craftsmanship and high-quality materials make the forklift perform excellent in harsh working conditions.



3.Internationally advanced joints, hoses and wear-resistant, high-temperature resistant and highly flexible imported seals, combined with reasonable pipeline layout, ensure the cooling, sealing, durability, safety and efficiency of the hydraulic system of the whole machine .



4.Electricity, timing, and fault display functions are convenient for the operator to understand the vehicle's condition and perform repairs and maintenance in time. The surface material of the electrical system is waterproof and dustproof, and the fully enclosed heat dissipation design of the central control unit makes the circuit simpler and more reliable.

Project

Unit

Parameters

Parameter item



XCF-PSG20

Rated carrying capacity

kg

2000

Minimum height of mast

mm

2335

Lifting height

mm

5000

Overall length/vehicle length/total width

mm

2380/1310/1260

Fork size

mm

40/120/1070

Outer space of forks (minimum/maximum)

mm

240/760

Minimum turning radius

mm

1750

Driving speed (full load/no load)

km/h

10.5/10.5

Lifting speed (full load/no load)

mm/s

270/380
