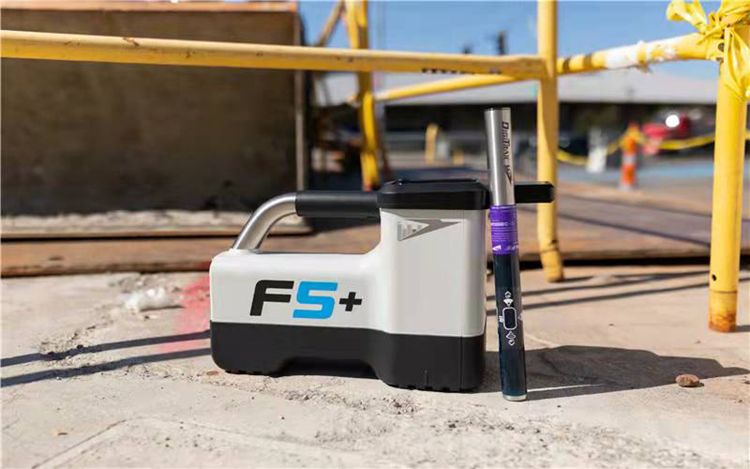

DCI parts Falcon FF5+/FAR5 4.5-45KHz directional drilling guidance system.

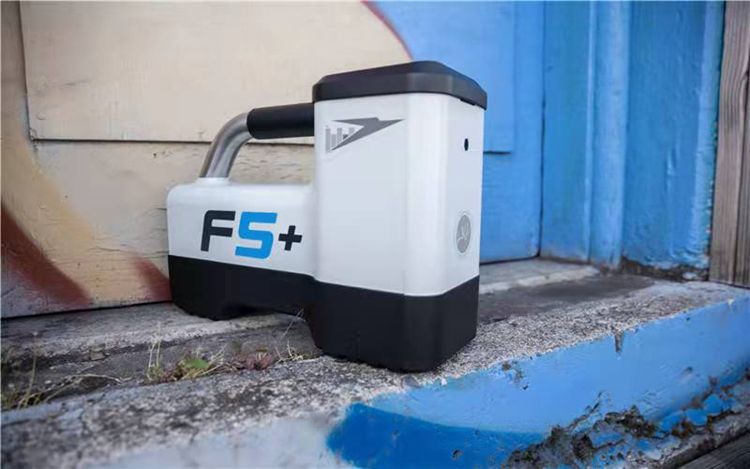

Pluto DCI attachments Falcon FF5+/FAR5 4.5-45KHz directional drilling guidance system is the HDD industry’s only walkover guidance system able to specifically address both active and passive interference. Transmitter frequencies below 1 kHz are proven most effective for jobsites where passive interference is a problem. In addition, the new Falcon F5 receiver supports Full Scale Sensitive Pitch (FSSP) for 0.1% resolution through ±99.9% slope for precision grade work.

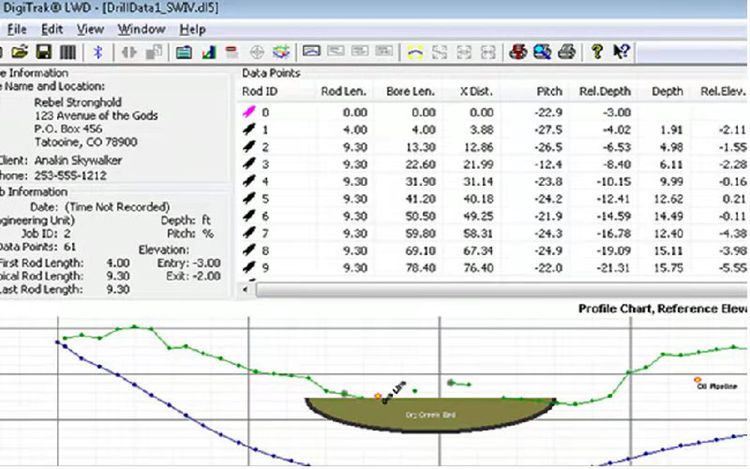

The Falcon F5 receiver offers the industry’s first fully integrated GPS capability using the DigiTrak iGPS module. Snap on the iGPS module and it automatically powers on to receive and record satellite GPS data. Use the free LWD Mobile app to view the progress of the bore and overlay the iGPS locate points on your smart device.

Features:

1.Wideband technology evaluates hundreds of frequencies for the best possible performance around active interference.

2.Ultra-low frequency options for battling passive interference on the jobsite.

3.Scan for interference, select optimum frequencies, and pair transmitter at the jobsite.

4.Switch between paired bands mid-bore Full Scale Sensitive Pitch provides 0.1% resolution through ±99.9% slope for precision grade work.

5.Max Mode filters noise to boost weak data signals and stabilize depth readings.

6.Standard warranty for 19- and 15-inch transmitters is 3 years/500 hours.
