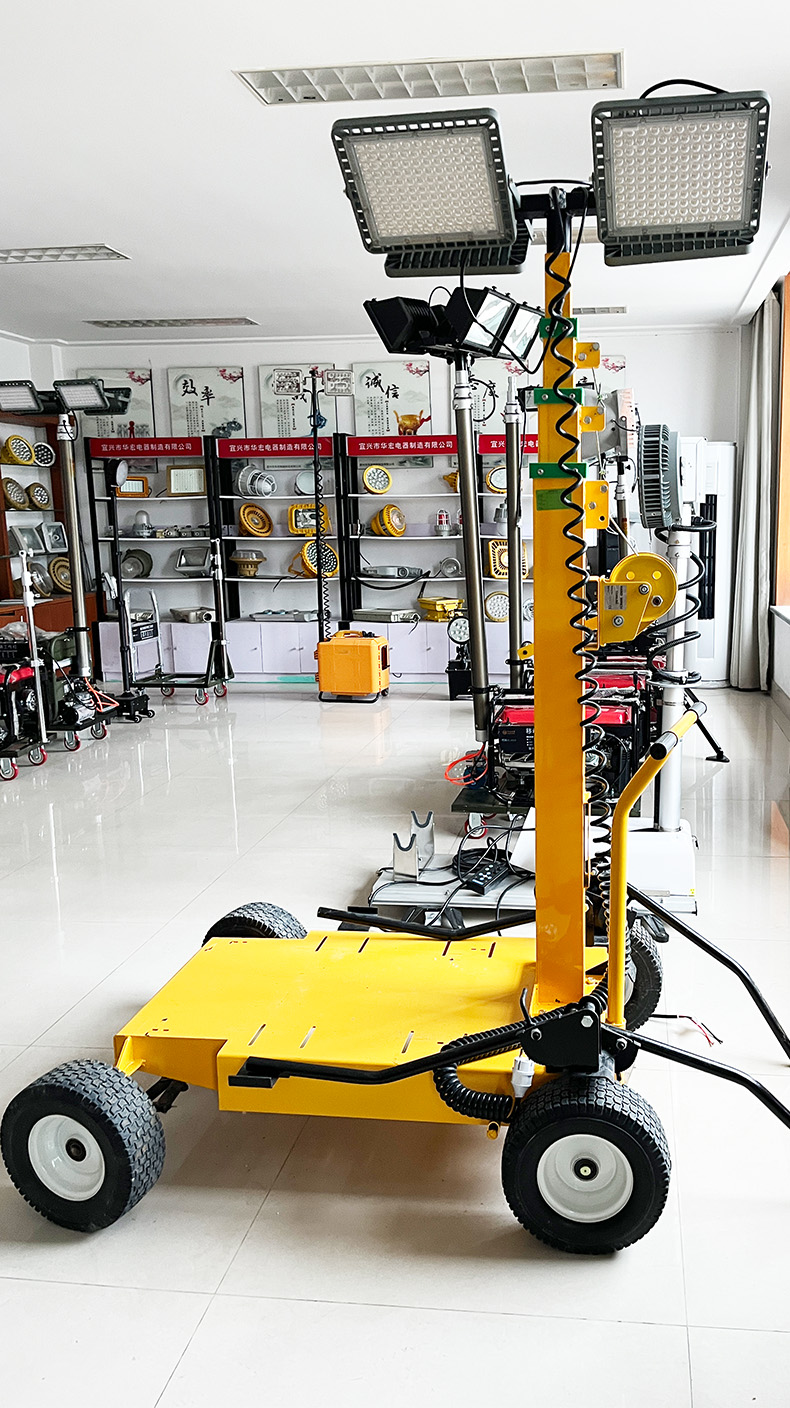

HMF955-S Trolley Mobile Light Tower
● Lamp: The lighting equipment is composed of multiple LED lamp caps.
● Telescopic Mast type: manual mast.
● Generator: gasoline generator set or diesel generator set can be selected.
● Composition structure: the lamp, telescopic mast and generator set are integral structures, and the generator set is equipped with 4 tires, which is more convenient to move.
● JSUHUAHONG series mobile lighting towers have the advantages of stable performance, high brightness, strong mobility, etc.
| Brand | JSUHUAHONG | |
| Voltage/Frequency | AC85～265V 50Hz | |
| Light source type | LED | |
| Power of lights | 4×200W | 4×400W |
| Luminous flux | 70000Lm | 140000Lm |
| Irradiation distance | ≧50m | |
| protection grade | IP65 | |
| Housing Material | Aluminium die cast | |
| Telescopic Mast type | Manual mast | |
| Mast section | 4 | |
| Rising Height | 4.5meters | 6 meters |
| Mast Size | 1500×350×300mm | 1600×350×300mm |
| Packaging size | 1540×410×350mm | 1650×410×350mm |
| Rated voltage | AC220V～240V 50HZ | ||
| Max power | 3.0KW | ||
| Rated power | 2.8KW | ||
| Fuel tank capacity | 12.5L | ||
| Engine oil capacity | 1.1L | ||
| Operating hours | ≧13hrs | ||
| Stabiliser Supports | 2×Manual |
| Number of Wheels | 4 Wheels |
| Wheel Size | Φ250mm |
| Brakes | Manual |
| Net weight | 140kg～200kg |
| Overall dimensions | 1220mm×950mm×2100mm |
| Package size | 1300mm×1050mm×650mm |
