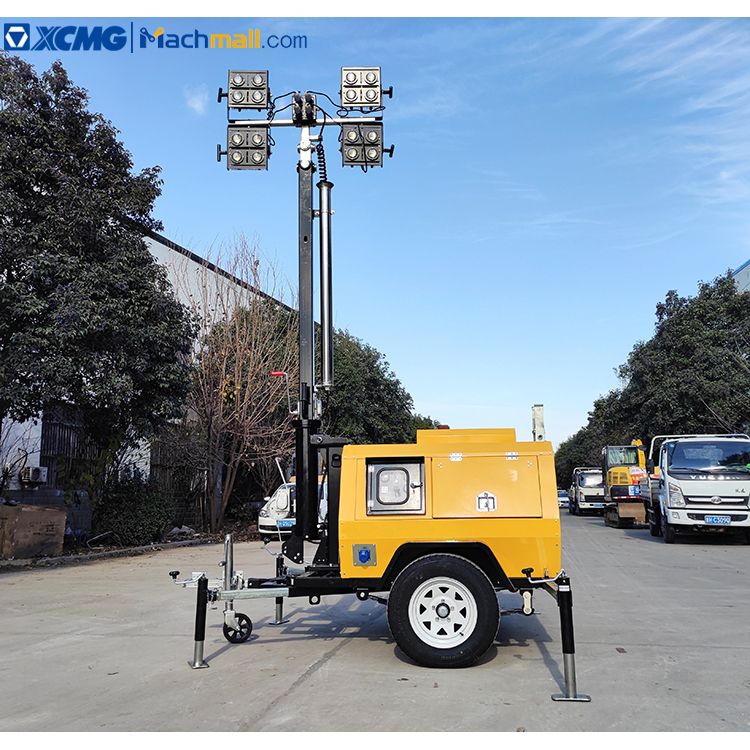

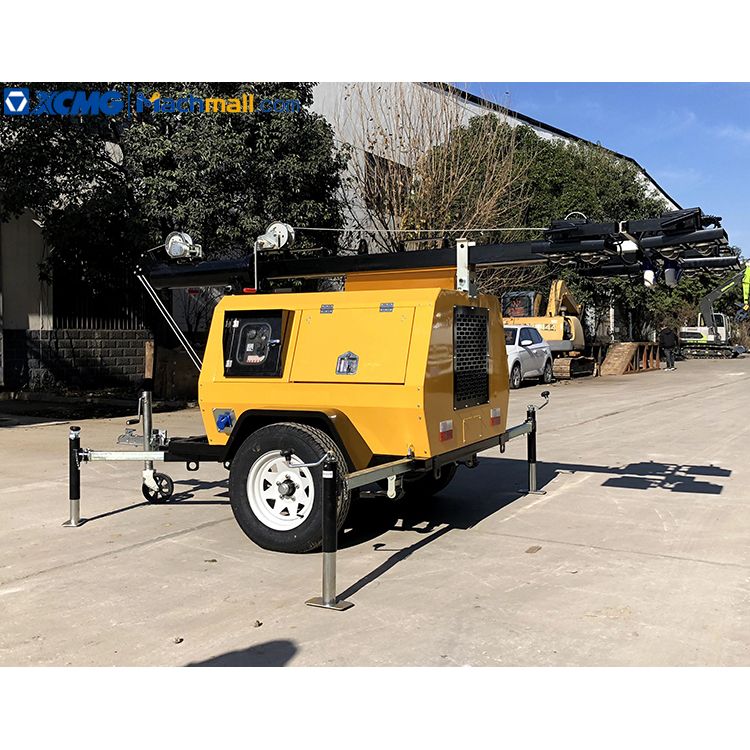

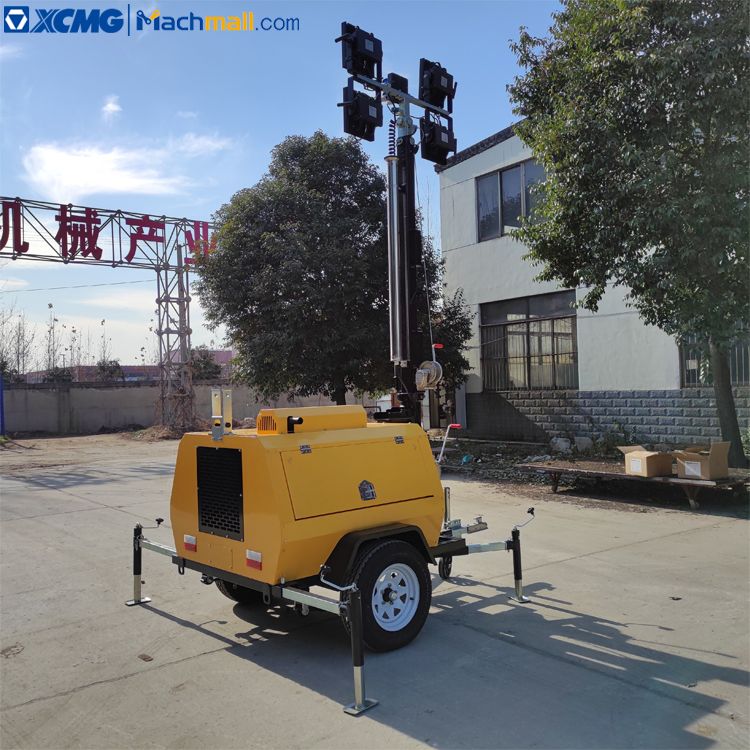

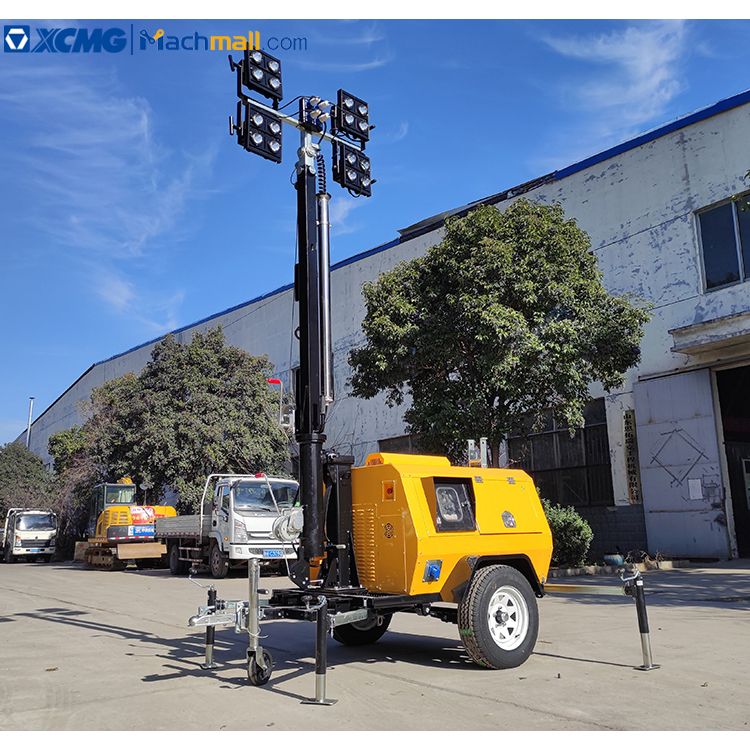

XCMG Official 9m Emergency Light 4TN4000 Trailer Type Hydraulic Mast Telescopic Light Tower Price
Equipped with imported power, quality assurance, superior performance. Equipped with metal halide lamp, large luminous flux and long life. High performance self-braking hand winch.
Three-section lifting pole, galvanized light pole, anti-drop, corrosion-resistant.
Five windproof support legs for stable support. Integrated operator panel with rain cover.
9 meters lifting height, adjustable irradiation angle, long irradiation distance.
Large capacity fuel tank, long battery life.
| Technical Date | Unit | 4TN4000 |
| Engine Type |
| Three cylinder, water-cooled, four stroke |
| Power | kW | 18.7 |
| Rotating Speed | rpm | 1500/1800 |
| Burning method | E-TVS | |
| Intake method |
| naturally aspirated |
| Emission class | conventional | |
Generator standard |
| SPARKS |
| Rated voltage | v | 230/240-120 |
| Motor insulation class | CLASS H | |
| Motor protection class | IP23 | |
| Headlights | Metal Halide Flood Lights / LED | |
| Luminous flux | lm | 440000 |
| Number & power oflamps | w | 1000*4/400*4 |
| Number of pole sections | 3 | |
| Fuel tank capacity | L | 110 |
| Continuous working time | h | 65 |
| Unit start method | key start | |
| Maximum wind speed | m/s | 20 |
| Noise level | dB | 72 at 7 meters |
| Suspension & Brakes | Leaf spring suspension & single axle without brake | |
| Drawbar |
| Adjustable lever with retractable adjustable guide wheel |
| Maximum lift height | m | 9 |
| Tire size | ' | 14 |
| Maximum traction speed | km/h | 100 |
| Length | mm | 4360 |
| Width | mm | 1430 |
| Height | mm | 1450 |
| Weight | kg | 960 |
