Product introduction：
|
Model (fixed fork type) |
EF4085A |
EF4120A |
EF4150A |
|
|
Model (adjustable fork type) |
EJ4085A |
EJ4120A |
EJ4150A |
|
|
Rated load |
(Kg) |
400 |
400 |
400 |
|
Load center |
(mm) |
350 |
350 |
350 |
|
Fork minimum/maximum height |
(mm) |
80/850 |
80/1200 |
80/1500 |
|
Fork length |
(mm) |
650 |
650 |
650 |
|
Single fork width |
(mm) |
110 |
110 |
110 |
|
Fork width (EF series) |
(mm) |
550 |
550 |
550 |
|
Fork width (EJ series) |
(mm) |
235-500 |
235-500 |
235-500 |
|
Overall dimensions (L x W x H) |
(mm) |
1100×590×1060 |
1100×590×1410 |
1100×590×1710 |
|
Front wheel specification |
(mm) |
Ф75×30（Rubber wheel） |
||
|
rear tire |
(mm) |
Ф125×40（Rubber wheel） |
||
|
Pump station power |
(KW) |
0.8 |
||
| Battery parameters |
(Ah/V) |
70/12 |
||
|
Minimum turning radius |
(mm) |
1100 |
1100 |
1100 |
| Net weight |
(Kg) |
117 |
122 |
127 |
|
Platform options (L x W) |
LP20(660×580) |
LP20(660×580) |
LP20(660×580) |
|

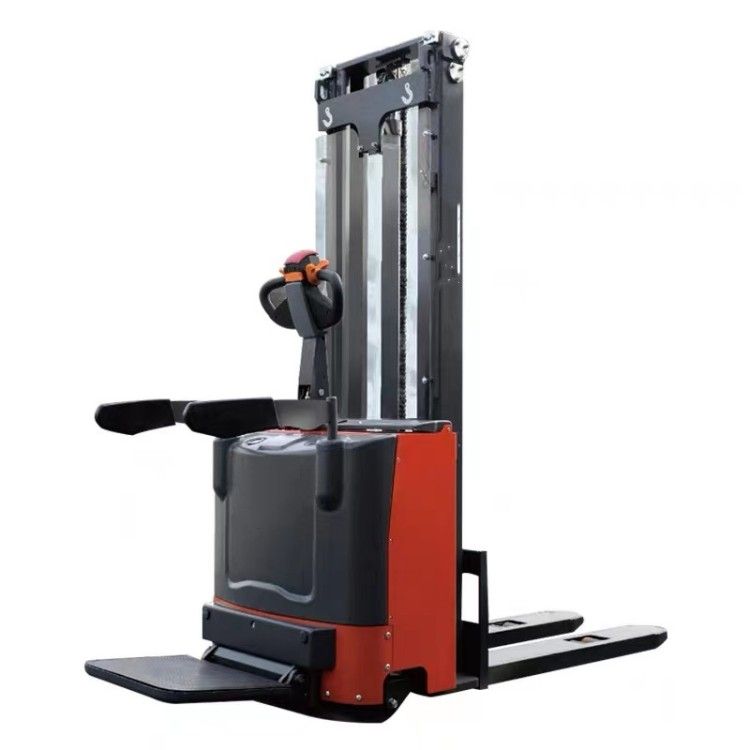

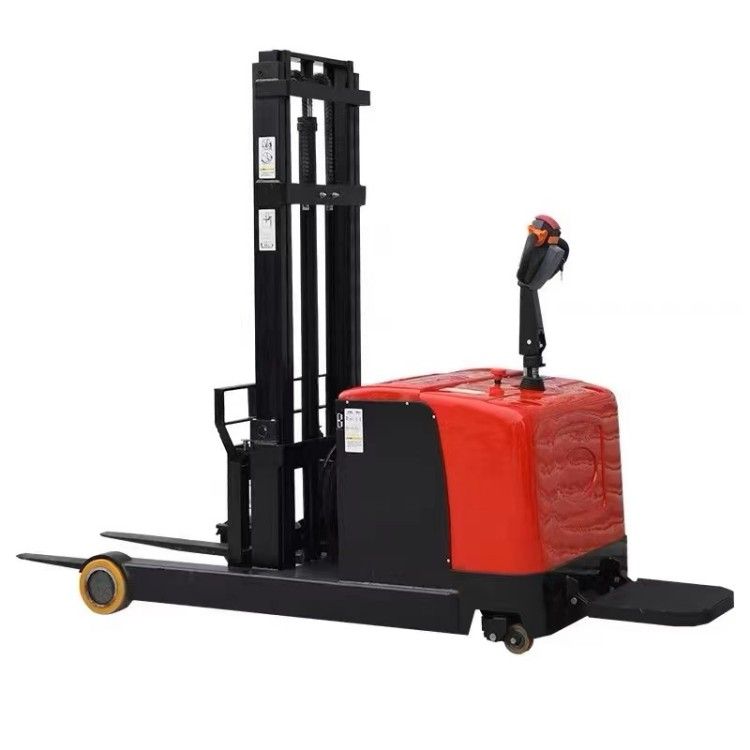

● Electric light stacker truck, with high-quality imported pump station, is light, convenient, labor saving and efficient
● The VARTA maintenance free starting battery of Johnson Controls is used to save maintenance time and cost. The power is durable, and the charge indicator and low-voltage alarm lamp are used
● The portal frame is made of high-quality cold drawn seamless steel pipe, which is durable and rust free after multiple chrome plating
Applicable to various mold handling and other occasions
● Comply with European EN1757-1 standard
