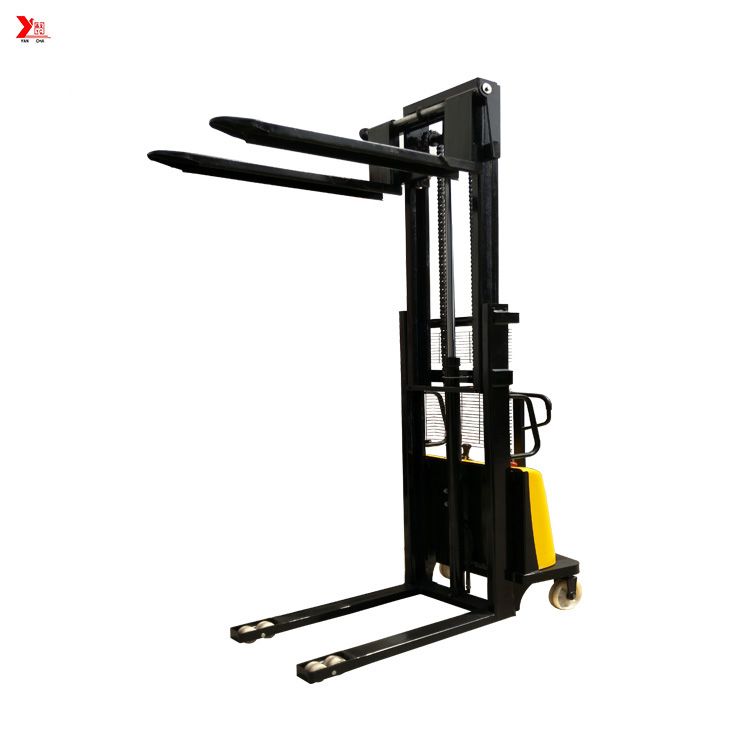

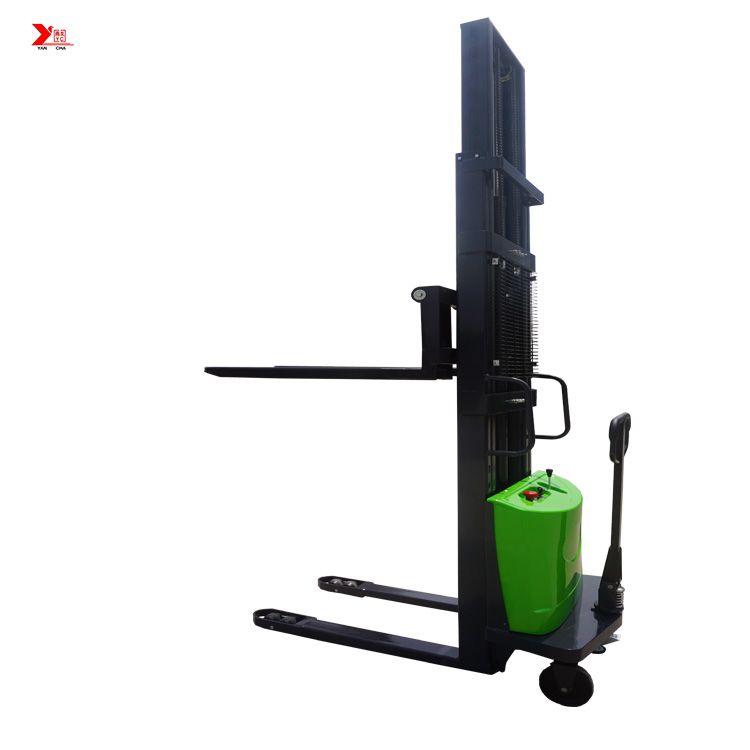

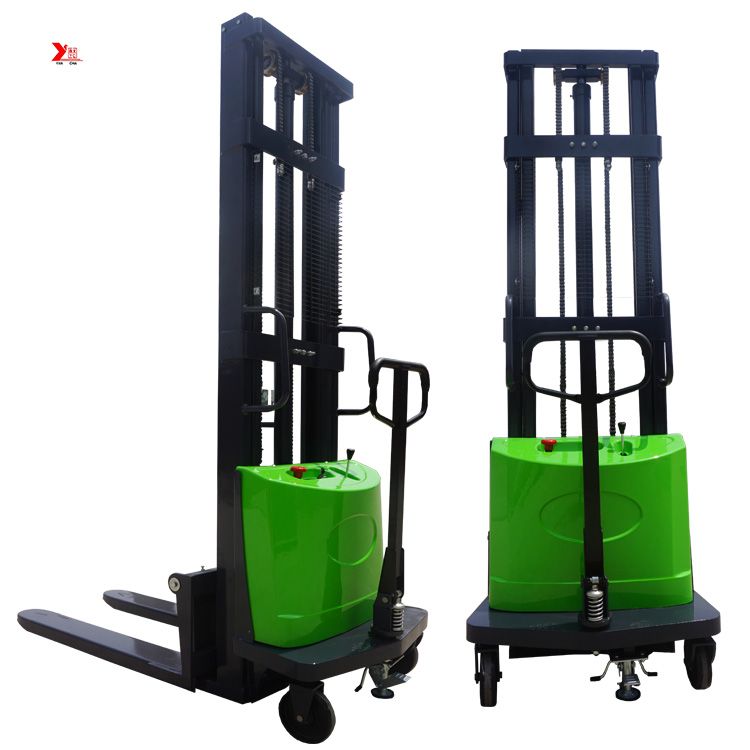

YANCHA stacker narrow aisle forklift 1 ton 1.5 ton.

YANCHA stacker narrow aisle forklift 1 ton 1.5 ton is economic and practical for stacking, loading and discharging because of its compact structure, small volume, light weight and convenient maintenance.

1. Lifting speed can be controlled by power.

2. Adopt low-noise imported hydraulic power unit with highly efficient battery and integration system.

3. Portal frame is made of manganese steel. Pressure-compensated valve is adopted: the heavier the cargo is, the slower the truck decreases; on contrarily, the lighter the cargos is, the faster the truck rises.

4.It can be operated flexible and easy.

Model	Unit	CDS1030	CDS1530	CDSD2030
Load Capacity	kg	1000	1500	2000
Lift Height	mm	3000	3000	3000
Load Center	mm	500	500	500
Fork Length	mm	1070	1070	1070
Lowest height	mm	85	85	85
Manipulation Way		Handle	Handle	Handle
Tyres		PU/Nylon	PU/Nylon	PU/Nylon
Lifting Speed at full Load	mm/sec	85	85	85
Battery	V/Ah	12/120	12/120	12/120
Working Time(for referece)	h	4	4	4
Lifting Motor	kw	2.2	2.2	2.2
The Min. Turning Inner Radius	mm	1200	1200	1200
L X W X H Dimension	mm	18008402080	18008402080	18008402080
weight	kg	400	420	430
lifting Height at each weight	mm	1600/2000/2500/3000/3500
Height of Door Frame	mm	2080/1600/1850/2080/2350
